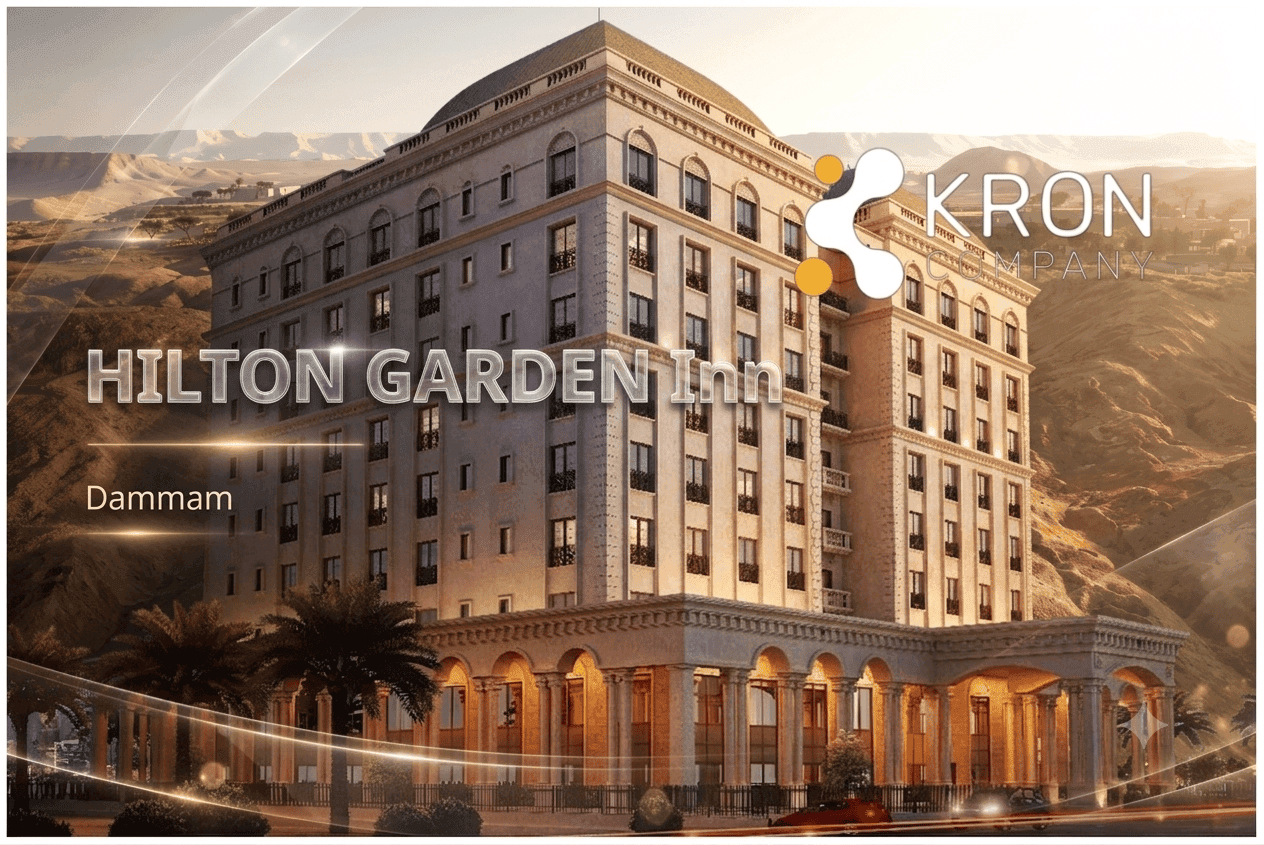

Hilton Garden Inn Project – Al Ahsa & Dammam: Advanced Passive Fire Protection by KRON
The Hilton Garden Inn Project in Al Ahsa and Dammam stands as one of the most prominent hospitality developments in the Eastern Province of the Kingdom of Saudi Arabia. Designed to provide modern accommodation that meets the highest international standards, this facility prioritizes quality, safety, and operational efficiency.
To ensure a secure environment for both guests and staff, the development incorporates advanced engineering and safety requirements. A critical component of this infrastructure is the integration of premium Passive Fire Protection (PFP) systems, strategically implemented to limit the spread of fire, smoke, and toxic gases throughout the building.
KRON’s Certified Firestop Solutions
KRON is proud to be the official supplier of INCA Firestop Systems for the Hilton Garden Inn Project in Al Ahsa and Dammam. Our premium firestop products are rigorously tested and certified in accordance with elite international standards, including UL, FM, and Intertek requirements.
Utilizing advanced expandable graphite technology, these firestop systems are specifically engineered to block the passage of fire, smoke, and hot gases through service penetrations and construction joints, ultimately maintaining the structural integrity of fire-rated walls and floors.

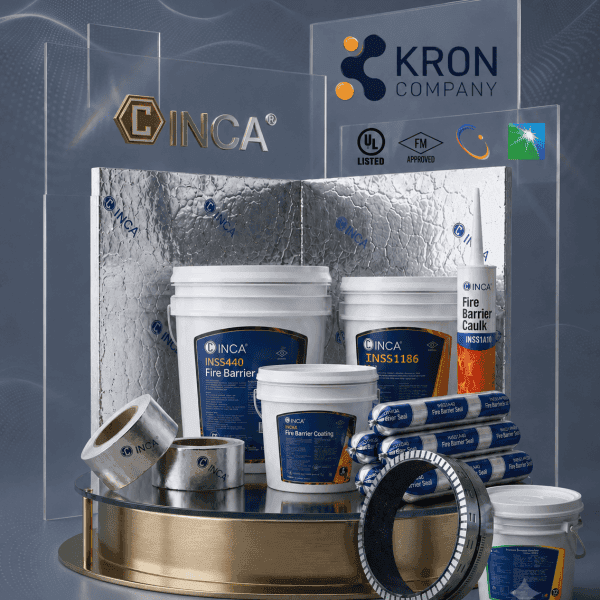

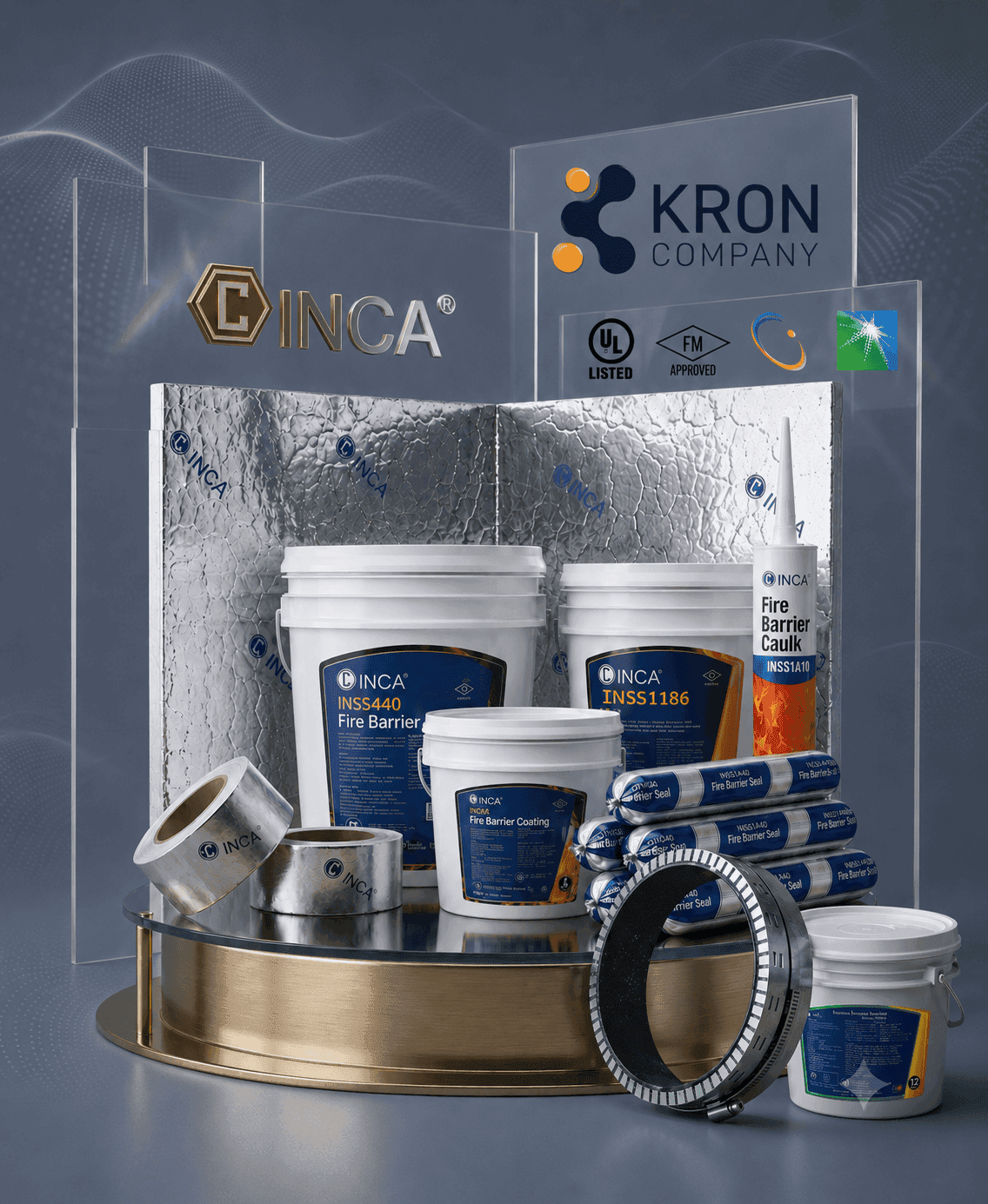

High-Performance Firestop Materials Supplied by KRON
To meet the complex safety demands of this hospitality development, KRON provided a comprehensive suite of passive fire protection materials:
Elastomeric Fire Caulk Fire Sealant – INSS1186
INSS1186 is a premium water-based elastomeric firestop sealant engineered to seal dynamic joints and service penetrations. It is designed to maintain outstanding flexibility even after curing, making it an essential component in modern firestop systems.
Global Certifications: UL 2079, ULC S115, ASTM E1966, ASTM E2307
Packaging Options: 310 ml cartridge, sausage pack, 1-gallon pail, 5-gallon pail
Shelf Life: 2 years
Key Features:
- Water-based acrylic formulation for safe application.
- Excellent flexibility to accommodate dynamic joint movement.
- Low VOC, ensuring better indoor air quality.
- Halogen-, asbestos-, and solvent-free.
- Highly resistant to smoke, air, and water penetration.
- Easy application using a caulking gun, brush, roller, or spray equipment.
Ideal Applications:
- Dynamic wall and floor joints.
- Curtain wall joint sealing.
- Cable and pipe penetrations.
- Expansion joints.
Fire Barrier Caulk Fire Sealant – INSS1440
INSS1440 is an advanced one-component, water-based intumescent fire sealant specifically developed for sealing penetrations in fire-rated walls and floors. Upon exposure to extreme heat, this intumescent caulk expands rapidly to close openings, effectively blocking the spread of flames, smoke, and toxic hot gases.
Global Certifications: UL 1479 (up to a 3-hour fire rating), FM Approved, ASTM E814, ULC S115
Packaging Options: Cartridge, sausage pack, 1-gallon pail, 5-gallon pail
Key Features:
- One-component acrylic sealant powered by intumescent technology.
- Eco-friendly water-based formulation.
- Strong, reliable adhesion to standard construction materials.
- Easy, hassle-free application.
- Free from halogens, asbestos, and silica.
- Exceptional long-term durability, exceeding a 50-year service life.
Ideal Applications:
- Cable, metallic, and plastic pipe penetrations.
- Mechanical and electrical service openings.
- Fire-rated door and window frame joints.
Intumescent Strip – INFS0812 / INFS0822
3. INFS0812 – Intumescent Strip
The INFS0812 is a specialized intumescent strip engineered for rapid expansion when exposed to high temperatures. It plays a crucial role in sealing complex gaps, serving as a reliable barrier against fire, smoke, and toxic gases.
Key Features:
- Fast, straightforward installation process.
- Expands multiple times its original size during fire exposure for maximum sealing.
- Effectively prevents the passage of flames and hot gases.
- Manufactured utilizing cutting-edge expandable graphite technology.
- A core component for comprehensive passive fire protection systems.
Ideal Applications:
- Combustible plastic pipe penetrations.
- Custom firestop systems.
- Fire-rated doors, walls, and partition assemblies.
Firestop Collar – SSCI
4. SSCXI – Firestop Collar
The SSCXI Firestop Collar is a heavy-duty, stainless-steel device housing a high-performance intumescent core. In the event of a fire, the intumescent insert expands inward to crush softening plastic pipes, securely sealing the structural opening to prevent fire and smoke migration.
Key Features:
- Rugged and durable stainless-steel housing.
- High-expansion intumescent core for rapid sealing.
- Efficient, easy-to-install design.
- Compatible with a wide range of standard plastic pipe sizes.
Ideal Applications:
- PVC pipe penetrations.
- Drainage, waste, and plumbing service penetrations.
- Water supply systems crossing fire-rated barriers.
Coated Firestop Board – FP-05
5. FP05 – Firestop Board
For large-scale sealing requirements, the FP05 high-density mineral wool firestop board is the ultimate solution. Featuring a factory-applied intumescent coating, it is specifically designed to seal large service openings while preserving the integrity and fire resistance of fire-rated walls and floors.
Global Certifications: UL Listed, FM Approved
Key Features:
- Density: 160 kg/m³.
- Dimensions: 1200 × 600 × 50 mm.
- Delivers robust fire resistance for up to 2 hours.
- Intumescent coating expands up to 30 times its original thickness during a fire.
- Low VOC, odorless, and entirely halogen-free.
- Provides excellent acoustic insulation (STC rated).
- Forms a tight seal against smoke and air passage.
- Easy to cut, shape, and install directly on site.
- Proven service life exceeding 50 years.
Ideal Applications:
- Large cable penetrations and heavy cable trays.
- Complex pipe penetrations.
- Oversized mechanical and electrical service openings.
- Fire-rated wall and floor compartmentation.
Through the strategic supply of state-of-the-art INCA Firestop Systems, KRON has made a significant contribution to the fire safety infrastructure of the Hilton Garden Inn Project in Al Ahsa and Dammam.
Our installed firestop solutions form a comprehensive passive fire protection network that maintains crucial compartmentation, halts the spread of fire and smoke, and safeguards both human lives and property. By meeting and exceeding international safety standards, KRON’s solutions fully support the project’s commitment to delivering a secure, reliable, and premium hospitality environment.
